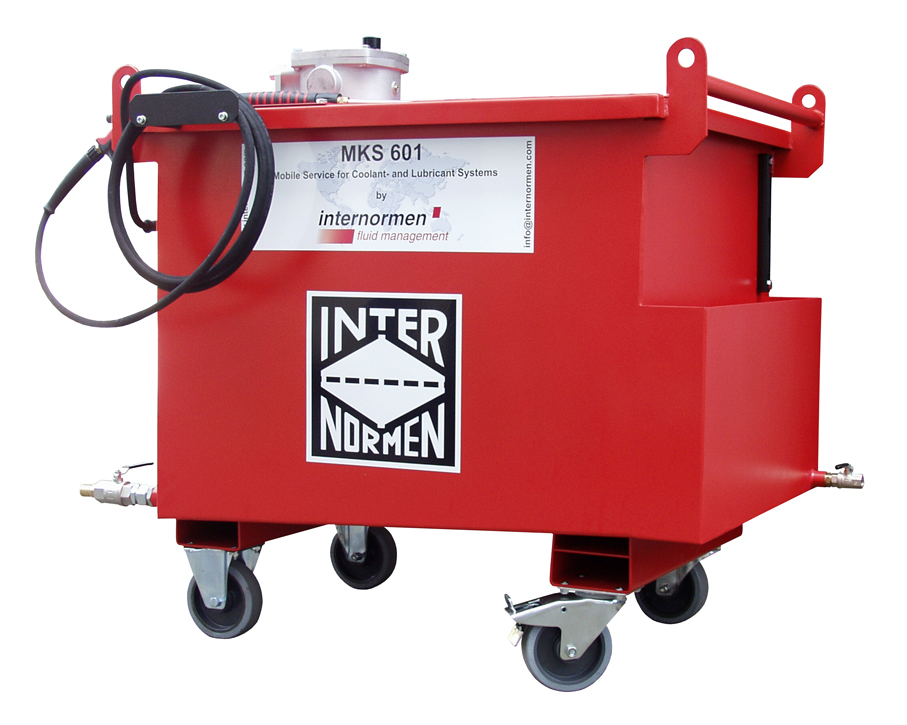

Internormen MKS 601 Mobil service enhet for kjølevæsker

Internormen fluid management
  • The MKS 601 is a mobile service unit designed to simplify draining of CNC machine tanks containing coolants or lubricants, and to remove contamination , originated by machining, from the emulsion
  • The unit is primarily being used in the manufacturing industry, where the conventional service time can be reduced by 2h per change
  • The MKS 601 guarantees less change, less consumption and less disposal of the coolant/lubricant, protecting the environment at the same time, and preventing exposure of employees to polluted coolants or lubricants
  • Easy, cost-effective and reliable filtration and oil separation

Kontakt Hydex vedrørende Internormen MKS 601 mobil service enhet

Type    Internormen mobil service enhet for kjølevæsker MKS 601
Net weight Approx. 270 kg
Dimensions 1440 x 1116 x 1200 mm
Operation By air pressure
Reservoir volume 600 l
Extraction of other fluids Yes
Extraction of chips Max. grain size 6 mm, pilot filter suggested
Separation of other fluids Separation tank
Solid particle separation Filter fineness from 1 µm to 25 µm
Cleaning of the machine Hand cleaning gun up to 6 bar
For mer informasjon Klikk her --- Datablad

Kontakt Hydex vedrørende Internormen MKS 601 mobil service enhet
