| Type |
|

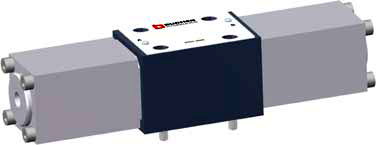

2/2 ... 4/4 Directional Seat Valve, Size 3 |
|
|
| Designation |
|

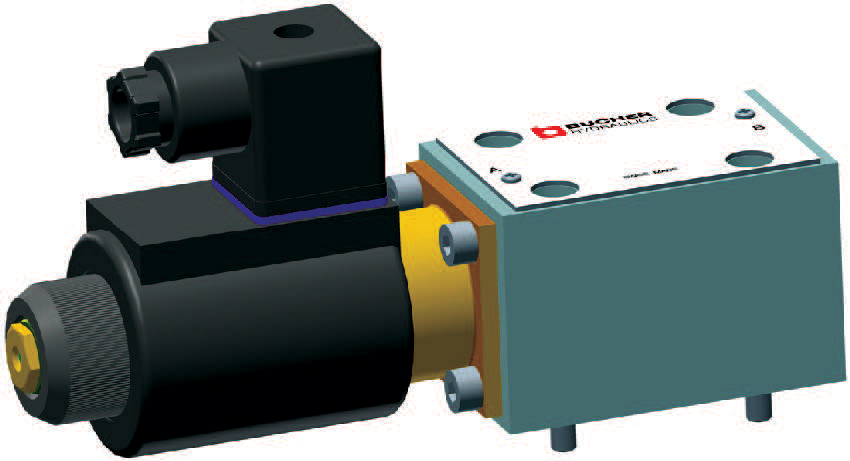

2/2, 3/2, 3/3, 4/3 or 4/4 solenoid operated directional seat valve |
|
|
| Design |
|
Manifold−mounting, bidirectional seat−valve shut−off, direct acting poppet and valve−spool design (pressure balanced) with underlapped or overlapped spool |
|
|
| Mounting method |
|
4 x ∅ 5,5 holes for M5x30 cap screws |
|
|
| Size |
|
Size 3 interface to ISO 4401−03−02 / DIN 24 340 A6 |
|
|
| Max operating pressure |
|
...315 bar |
|
|
| Max flow rate |
|
20 l/min |
|
|
| Flow direction |
|
1 → 2 / 2→ 1, see symbol |
|
|
| Hydraulic fluid |
|
Hydraulic oils HL and HLP to DIN 51 524;
For other fluids, please consult BUCHER |
|
|
| Fluid temperature range |
|
−25°C ... + 80 °C |
|
|
| Viscosity range |
|
10...650 mm²/s (cSt),
Recommended 15...250 mm²/s (cSt) |
|
|
| Minimum fluid cleanliness |
|
20/18/15 to ISO 4406 : 1999 |
|
|
