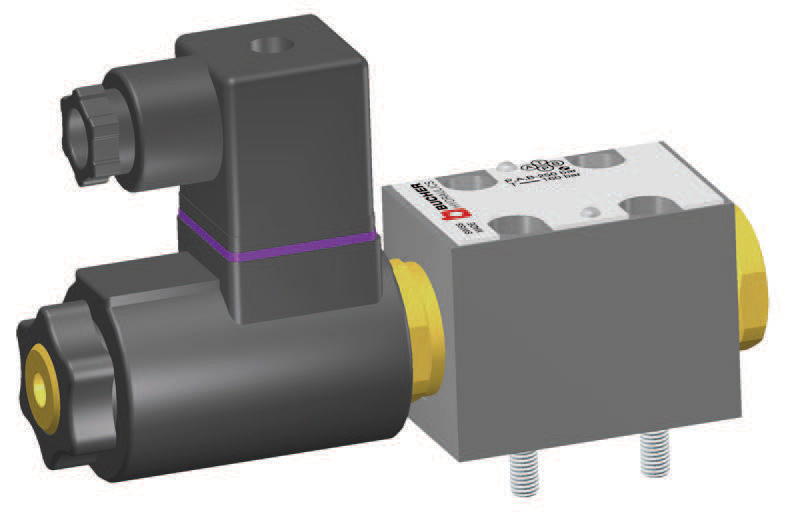

- Directly controlled ball seat valve, hermetically sealed in closed position, zero leakage from P → A
- All parts are of corrosion resistant materials, wearing parts easily accessed and quickly replaced
- Robust heavy-duty magnet with double bearings and surface protection against corrosion, square plug can be turned through 360° in 90° steps
- All internal parts are protected from dust, dirt and leaking water by seals between valv - body, and actuator-lever housing
- Actuator-lever and magnet tappet are clearly visible through the sight glass - By removing the sight glass it it possible to operate the valve manually
- The valve can be retrofitted with a proximity switch and a manual actuator (latching)
- A filter-orifice, which forms part of the P-connection, prevents intrusion of larger dirt particles
|
|
 |
