MOOG RKP serie radialstempelpumper - Digital kontroll

MOOG radialstempelpumper

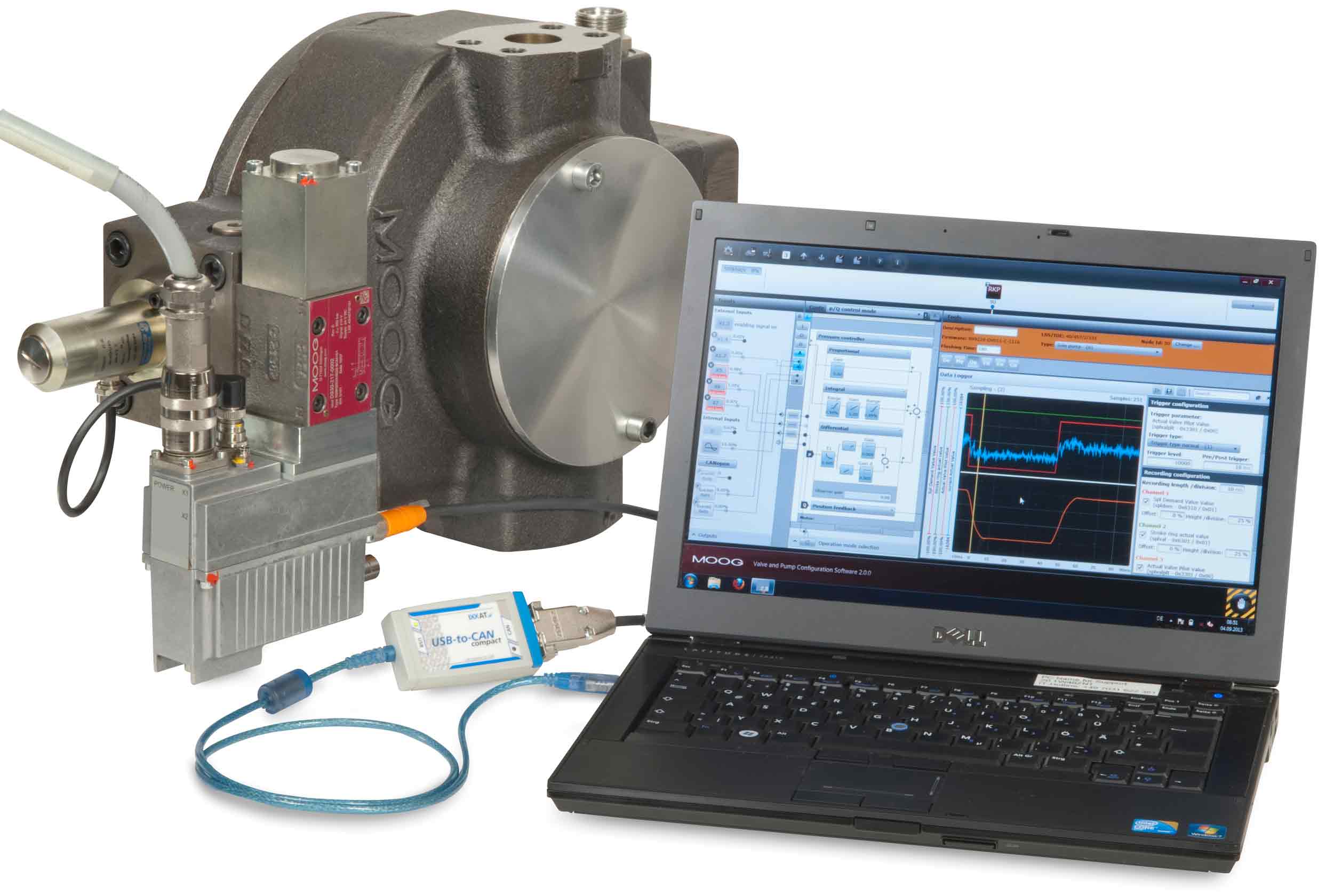

  • Electro-hydraulic version of the RKP with a fieldbus interface
  • The flexile and advanced solution for machine applications requiring high dynamics and reliability such as injection molding and metal forming machinery
  • Closed-Loop Control: The new pilot valve with digital onboard-electronics provides more dynamics and improved precision control of the basic pump functions (flow and pressure regulations)
  • Analog or Digital Control: The ability to function as a CANopen device or as a traditional analog device ensures compatibility with several PLC structures
  • On-the-Fly Adjustment: Changing the parameters of the pressure controller "on-the-fly" enables optimization of the performance of sequential machine processes with multiple cylinders, a process nearly impossible with traditional pump operations
  • Optimized Multiple Pumps: Optimized multiple pump arrangements in master-slave format now allows users to easily combine multiple servo-pump stages in one common oil volume, while providing superior pressure control
  • Advanced Troubleshooting: Full access to all internal parameters during runtime helps to minimize downtime and enables users to diagnose common faults via Human Machine Interface (HMI) or laptop interface
  • Save Space and Assembly Time: No assembly space inside the cabinet is required due to the design of the Digital Control Pump including onboard-electronics
  • Explosion-proof and Digital Control (RKP-D) versions available

Kontakt Hydex vedrørende MOOG RKP serie digital kontroll radialstempelpumper

Type    Radial Piston Pump
Mounting methodEnd mounting
Max continous pressure350 bar
Max pressure385 bar
Max peak pressure420 bar
Displacement19-250 cm³/rev
Theoretical flow (mineral oil)28,5-210 l/min (at 1500 rpm)
34,2-252 l/min (at 1800 rpm)
Max speed2800 rpm
Hydraulic fluid Mineral oil according to DIN 51524
Viscosity range12...100 mm²/s, 16...46 mm²/s recommended
Hydraulic fluid temperature-15°C to +80°C
FilteringNAS 1638: class 9
ISO 4406: 20/18/15
Typical applicationsInjection Molding Machinery
Metal Forming Machinery and Presses
For mer informasjon Klikk her --- Katalog --- Oversikt

Kontakt Hydex vedrørende MOOG RKP serie digital kontroll radialstempelpumper
