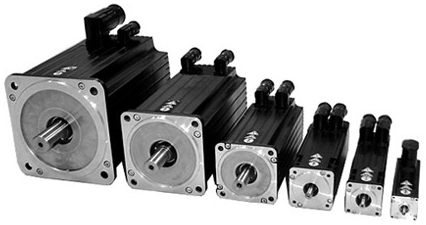

MOOG CD serie børsteløse servomotorer

MOOG servmotorer
  • Designed for highly dynamic servo applications where positioning times of 30 mSec or less are often the norm
  • AC Servo Motor (Synchronous)
  • Low inertia, compact length
  • Type of Motor: Totally enclosed, natural cooling (optional fan ventilation)
  • High voltage (600 Vdc Brushless Servo Motor) available
  • Flameproof servo motors available

Kontakt Hydex vedrørende MOOG CD serie børsteløse servomotorer

Type    Brushless Servo Motor
Stall torque 0.15-74.2 Nm
Maximum torque 0.5-240 Nm
Nominal speed 2400-11700 r/min
Inertia 0,026-79,5 kg cm²
Square flange 40-190 mm
Approvals available
Typical applications Metal Forming and Presses
Plastics
Robotics
For mer informasjon Klikk her --- Datablad --- Katalog

Kontakt Hydex vedrørende MOOG CD serie børsteløse servomotorer
