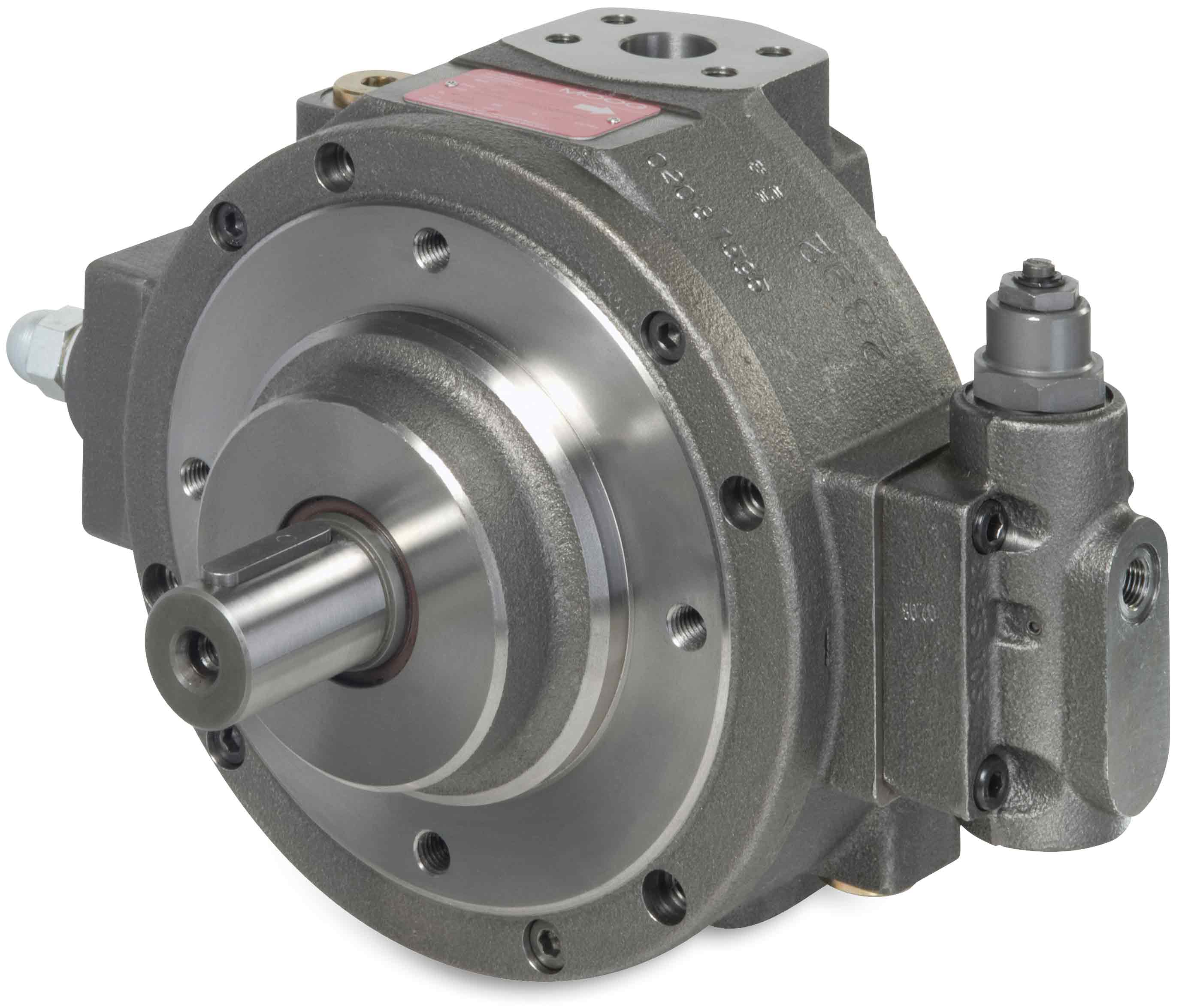

MOOG RKP high pressure serie radialstempelpumper

MOOG radialstempelpumper
  • Significantly reduced sound level for noise-critical applications, helps machine builders to meet the European Union’s (EU) noise guideline (2003/10/EC)
  • Available in sizes 19, 32, 45, 63, 80, 100 and 140 cc per revolution. For needs beyond these sizes, please contact your local Moog office.
  • The standard design permits continuous pressure to 280 bar [4,000 psi] with 350 bar [5,000 psi] peak limit and the high-pressure version is capable of continuous pressures up to 350 bar [5,000 psi] with 420 bar [6,000 psi] peak limit
  • Highly energy efficiency design saves on operating costs
  • Flexibility in implementing this product into new machine designs due to the availability of a large number of sizes, control types and mounting flanges, as well as approved versions for a variety of operating liquids
  • Improved durability, low maintenance requirements and long pump life help significantly reduce maintenance costs and encourage more uptime
  • Increased stability, even under unfavorable operating conditions
  • Simplified connection for easy set-up and commissioning
  • Explosion-proof and Digital Control (RKP-D) versions available

Kontakt Hydex vedrørende MOOG RKP high pressure serie radialstempelpumper

Type    Radial Piston Pump
Mounting method End mounting
Max continous pressure 350 bar
Max pressure 385 bar
Max peak pressure 420 bar
Displacement 19-250 cm³/rev
Theoretical flow (mineral oil) 28,5-210 l/min (at 1500 rpm)
34,2-252 l/min (at 1800 rpm)
Max speed 2800 rpm
Hydraulic fluid Mineral oil according to DIN 51524
Viscosity range 12...100 mm²/s, 16...46 mm²/s recommended
Hydraulic fluid temperature -15°C to +80°C
Filtering NAS 1638: class 9
ISO 4406: 20/18/15
Typical applications Injection Molding Machinery
Metal Forming Machinery and Presses
Wind Turbines
Automotive Test
Aerospace Test
Injection and Pressure Casting
Machine Tools
Construction
Mining
Rubber processing
