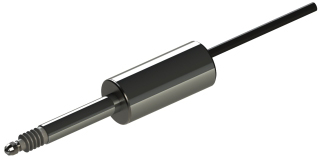

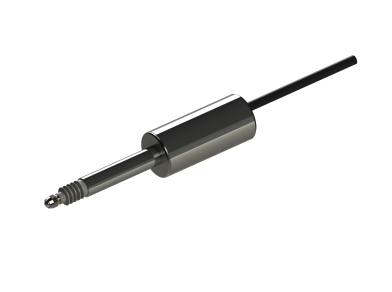

Solartron DG analogue gauging probe

Solartron analog måling
  • Measuring Range 0.5 mm
  • Resolution Programmable to < 0.01 μm
  • Tip Forces down to 5 g
  • Excellent Repeatability
  • Up to 3906 Readings/Second
  • Industry Standard Styli
  • Compact Size
  • Direct Reading in mm/inch


Kontakt Hydex vedrørende Solartron DG analogue gauging sensor

Type    Analogue gauging probe
Measurement range ± 1.0 ... ± 5.0 mm
Pre-Travel 0.15 ... 1.65 mm ± 0.05
Temperature range +5°C ... +60°C
IP Rating IP65
Supply voltage 10 - 24 VDC
For mer informasjon Klikk her --- Datablad  --- Katalog

Kontakt Hydex vedrørende Solartron DG analogue gauging probe
