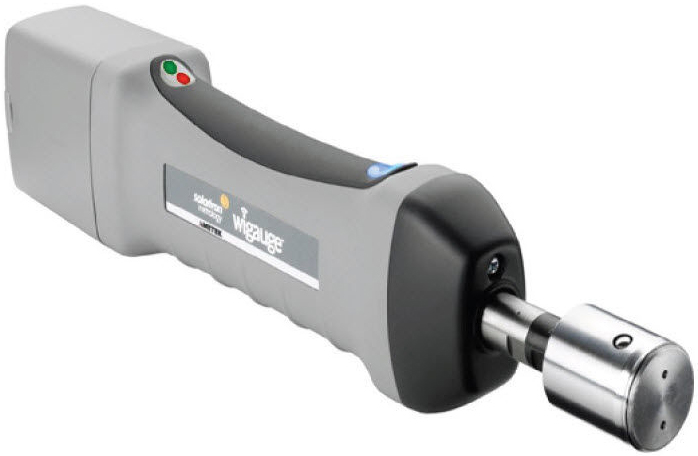

Solartron WIGAGE wireless bore gauge
Solartron trådløse måleredskaper
10 mm & 6 mm Diameter fixing threads (as used on most popular Gauge Heads)
Up to 0.1 μm resolution (user selectable)
Up to 15 Metre Data transmission, via Class 1 Bluetooth®
Up to 7 WBG connected to a single system
10 hours battery life (based on continuous data transmission)
Fast battery recharge
IP 65 protection
Pass/Fail range lamps
Audio indication of data transmission
Kontakt Hydex vedrørende Solartron Wigauge wireless bore gauge
Type
Wireless bore gauge
Measurement range
10 mm
Mechanical Travel
11 mm
Accuracy
Dependent on gauge head fitted
Resolution
0.1 µm (User Selectable)
IP Rating
IP65
Temperature range
+10°C ... +50°C
Battery life
10 hours based on continuous data transmission using supplied rechargable battery packs
For mer informasjon
Klikk her
---
Datablad
---
Katalog
Kontakt Hydex vedrørende Solartron Wigauge wireless bore gauge
