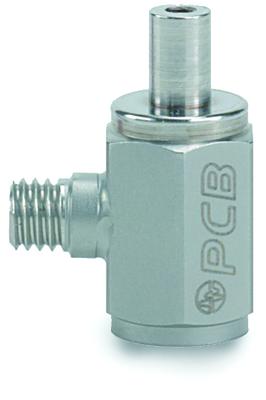

PCB Piezotronics model 209C11 miniature quartz ICP® force sensor

PCB Piezotronics miniature quartz force sensors

Miniature ICP® force sensor, 1 sec DTC, 2.2 lb comp., 1 lb tension, 2200 mV/lb
Sensitivity: (±15%) 2200 mV/lb (494604 mV/kN)
Low Frequency Response: (-5%) 0.5 Hz
Upper Frequency Limit: 30000 Hz
Temperature Range: -65 to +250 °F (-54 to +121 °C)
Mounting Thread: 10-32 Female (No Metric Equivalent)
Application
- High sensitivity
- Tension/compression models
- High resonant frequency
