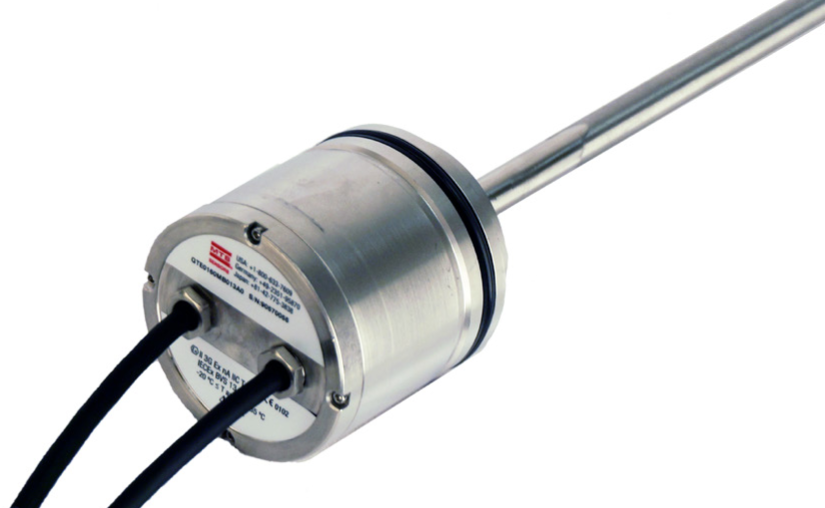

Rugged Industrial Sensor
Compact Design with a 10 mm (0.39 in.) O.D.
Stainless-Steel Rod
Embeddable for added protection in harsh environments
Offers Redundancy for Enhanced Safety Applications
Linear, Absolute Measurement
Contains Two Independent Measuring
Systems in a Single Compact Housing
Non-Contact Sensing Technology
Superior Accuracy, Linearity Deviation Less Than 0.02%
Repeatability Within 0.001%
Fully Adjustable Analog Outputs (Voltage or Current) Within: -10 to +10 Vdc or 0 to 20 mA
Available with IECEx certification for hazardous areas

Type		Magnetostrictive position sensor
Measuring variable		Position
Output		Voltage: 0 to 10, 10 to 0, -10 to +10, +10 to -10 Vdc (minimum controller load > 5k ohms) Current: 4 (0) to 20 mA, 20 to 4 (0) mA (min./max. load 0/500 ohms)
Stroke length		50-2540 mm
Resolution		Infinite (restricted by output ripple)
Positions		Multi-position
Feature		---
For mer informasjon		Klikk her --- Datablad --- Produktoversikt
