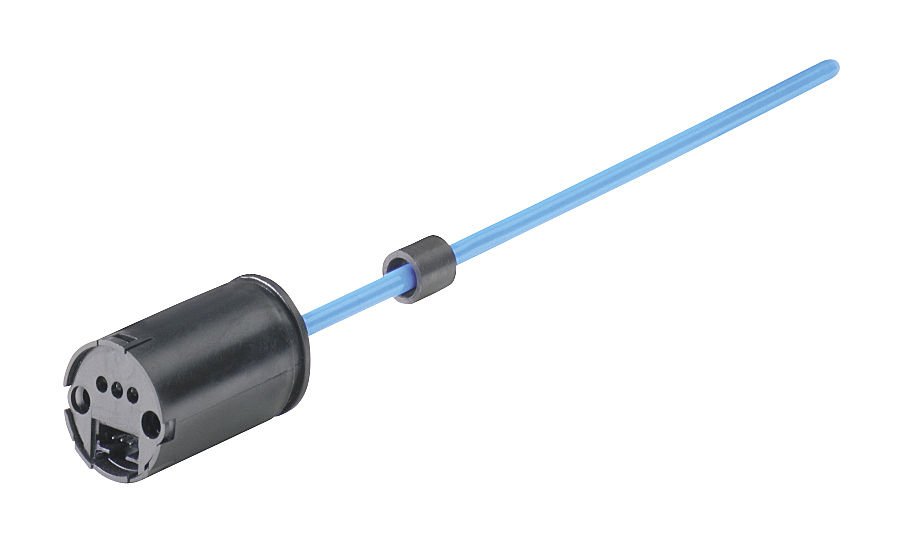

MTS Temposonics® C-series light industrial sensors

Compact construction, a reasonable price for large-series production, complete functionality and modularity: the C-Series position trandsducers provide persuading solutions for all requirements of the OEM-market.
MTS Light Industrial Sensors
  • Non-contact - No wear, such as found with pot wipers on conductive mylar, particularly when mounted on dithered actuators
  • Light Weight - Ideal for small portable OEM products
  • Low Cost - Total Cost Competitive* with linear pots or LVDT’s
  • Short Operating Space - Half the space needed compared to LVDTs or rod and cylinder pots
  • Small Size - This smallest package in the market that has all the benefits of magnetostrictive sensing yet fits where no other can
  • Low Power Needs - Allows use with printed circuit-level supplies of 5 VDC
  • No Drift - No periodic re-calibration needed
  • Optional Supply Voltages - Allows use in 5 or 12-Volt systems
  • Optional Housings - Allows exposed use by offering mounting options and several levels of environmental protection up to protection IP67 / IP69K
  • Optional Magnets - Other magnet configurations allow greater range of installation choices
  • Customizable Active Zones - Offers full output sensitivity for smaller active zones
  • Customizable Reading Direction - Forward or Reverse acting analog output allows match to control requirements

Kontakt Hydex vedrørende MTS Temposonics® C-series light industrial sensors

Type    Magnetostrictive position sensor
Output Digital: PWM (Pulse width signal)
Analogue:
Type CS 0.1 to 4.9 VDC 5 VDC supply, ratiometric with V supply
Type CM 0.1 to 4.9 VDC, fixed output 12 VDC supply ± 25%; forward acting
Update frequency 2,6 kHz (0.385 ms)
Stroke length 72-250 mm
Protective housing IP67- IP69K
H2: Material 1.4404 / 316L
M1: Material 1.4305 / 303
For mer informasjon Klikk her --- Datablad Analogue --- Datablad Digital
