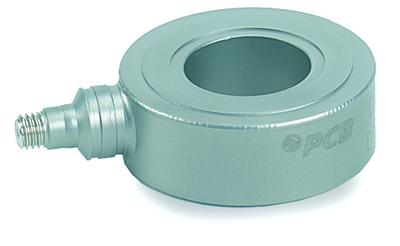

PCB Piezotronics model 213B quartz ICP® force ring

PCB Piezotronics quartz ICP® force rings
  • Force ring, 20k lb comp., 18 pC/lb, charge output
  • Upper Frequency Limit: 60000 Hz
  • Temperature Range: -100 to +400 °F (-73 to +204 °C)
  • Weight: 1.3 oz (38 gm)

  • Application
    - Crimping, Stamping, & Press Monitoring
    - Machinery Mount Forces
    - Mechanical Impedance Testing
    - Material Testing
    - Tablet & Punch Presses
    - Roll Nip Profile
    - Balancing
    - Machinery Process Monitoring
    - Stamping & Forming
    - Force Limited Vibration Testing



For mer informasjon      Klikk her --- Datablad --- Tegninger --- Oversikt

Kontakt Hydex vedrørende PCB Piezotronics model 213B quartz ICP® force ring
