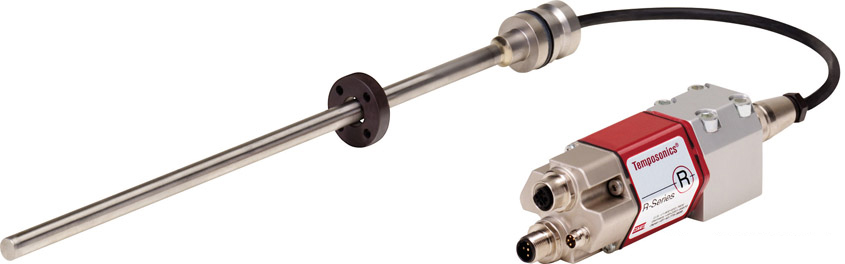

MTS Temposonics® RD4 position sensors

MTS Industrial sensors
  • Rugged Industrial Sensor
  • Linear and Absolute Measurement
  • LEDs for Sensor Diagnostics
  • Non-contact Sensing with Highest Durability
  • Superior Accuracy: Linearity better 0,02 % F.S.
  • Repeatability 0,001 % F.S.
  • Direct Output for Displacement + Velocity Analog / SSI / CANbus / Profibus-DP / EtherCAT / POWERLINK
  • Multi-Position Measurement: max. 20 Positions with 1 Sensor


Kontakt Hydex vedrørende MTS Temposonics® RD4 position sensors

Type    Magnetostrictive position sensor
Measuring variable Displacement
Velocity
Multi-Position measurement max. 0 positions (CANbus, Profibus, EtherCAT)
Output Voltage: 0...10 V; 10...0 V; -10...+10 V (Additional output ranges available between -10 and +10 V)
Current: 0/4 ...20 mA; 20....4/0 mA  (Additional output ranges available between 0 and 20 mA)
SSI: Gray- or Binary-Format; Data length selectable; synchronous / asynchronous measurement; optional Parity- and Error Bit
Fieldbus: CANbus; CANOpen; Profibus DP-V1; DNet; POWERLINK; EtherCAT; EtherNet/IP
Stroke length 25-5000 mm
Resolution Analog: 16 Bit; 0,0015 %
Digital: CAN 2 μm; Profibus, POWERLINK, EtherCAT u. EtherNet/IP 1 μm; SSI 0,5 μm
Positions 1-30
Features Velocity Measurement
Simultaneous Multi Magnet Measurement  - Analog 2 positions; CANopen, POWERLINK up to 4 positions; EtherCAT up to 20 positions; Profibus, CANbus up to 30 positions, SSI differentiation measurement of 2 positions
Measuring range and sensor parameters are programmable
For mer informasjon Klikk her --- Datablad --- Produktoversikt --- Tilbehør
