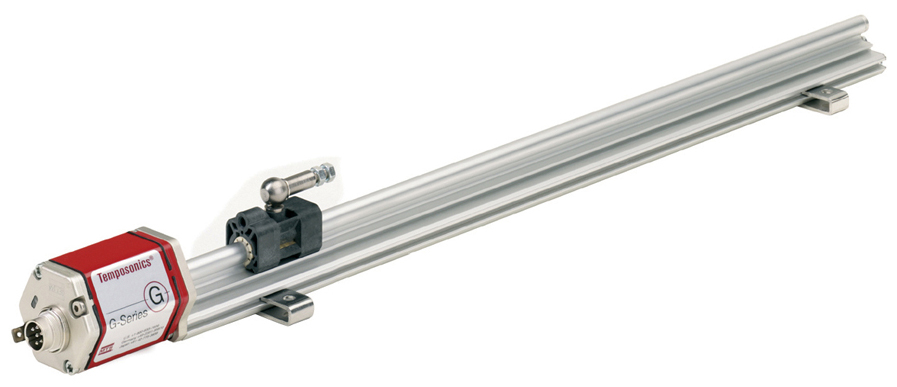

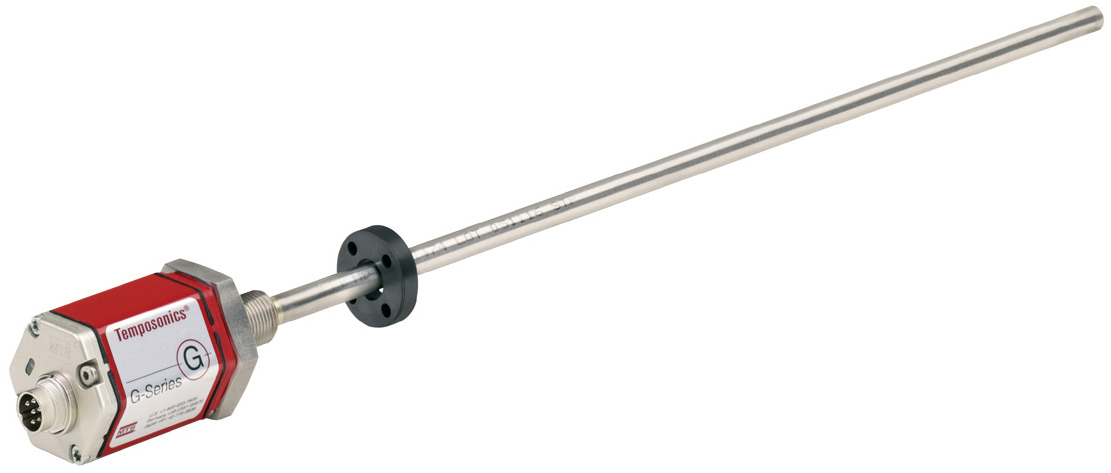

MTS Temposonics® GP / GH position sensors

MTS Industrial sensors
  • Rugged Industrial Sensor
  • Linear Absolute Measurement
  • Contactless Sensing with Highest Durability
  • Enhanced diagnostics and programming capability
  • Superior Accuracy: Linearity better 0,02 %
  • Repeatability 0,001 %
  • Direct Analogue Output
  • Digital Start/Stop Pulse Output


Kontakt Hydex vedrørende MTS Temposonics® GP / GH position sensors

Type    Magnetostrictive position sensor
Measuring variable Displacement
Output Voltage: 0...10 V; 10...0 V; -10...+10 V, +10...-10 V
Current: 0/4...20 mA; 20...4/0 mA
Stroke length 50-7600 mm
Resolution Analog: infinite, controller dependent and restricted by output ripple (0,01 %)
Digital: 5 μm dependent on controller
Positions 1-15
Feature Simultaneous Multi Magnet Measurement on Start / Stop; Analog 2 measurements
Measuring range programmable
For mer informasjon Klikk her --- Datablad --- Produktoversikt

Kontakt Hydex vedrørende MTS Temposonics® GP / GH position sensors
