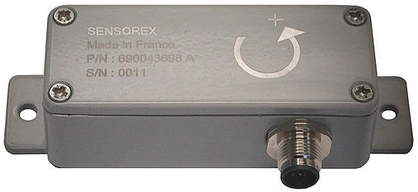

Sensorex SX4369X packaged MEMS gyrometer

Sensorex inclinometers
  • Made up of a micro-machined sensitive element in silicon with a vibrating structure, allowing the sensor to be used in severe environments, as there are no moving parts
  • Gyro has the following functions:
    - Voltage regulator at 5 V
    - Amplification of output with gain/zero adjustment
    - Protection against electro-magnetic interference
  • Range, ± 50°/s, ± 75 °/s and ± 200°/s
  • Analogue output ± 5V
  • Low thermal drift
  • Excellent resistance against shock and vibration


Kontakt Hydex vedrørende Sensorex SX4369X packaged MEMS gyrometer

Type    Packaged MEMS gyrometer
Measurement range ± 50° ... ± 200°
Output Analog ± 5V
Power supply 9 to 36 VDC
Temperature range -40°C ... +60°C
Shock 200 g (1 ms, ½ sinus)
Protection IP65
Application Automotive and railway tests
Platform and camera stabilisation
For mer informasjon Klikk her --- Datablad
