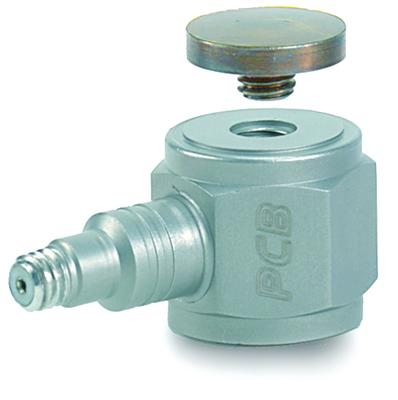

PCB Piezotronics model 208C02 multi-purpose, ICP® force sensor

PCB Piezotronics general purpose quartz force sensors

Multi-purpose, ICP® force sensor, 100 lb comp., 100 lb tension, 50 mV/lb
Sensitivity: (±15%) 50 mV/lb (11241 mV/kN)
Low Frequency Response: (-5%) 0.001 Hz
Upper Frequency Limit: 36000 Hz
Temperature Range: -65 to +250 °F (-54 to +121 °C)
Mounting Thread: 10-32 Female (Not Applicable)
Application
- Dynamic Tension & Compression
- Impact & Repetitive Applications
- Drop Testing
- Materials Testing
