Sensorex - Other product ranges

Sensors & conditioners - Intrinsically safe (ATEX)
Type   Sensors and conditioners
Egenskaper LVDT ATEX - According to ATEX 94/9/CE
CER ATEX - High performance LVDT
RVDT ATEX - High performance RVDT

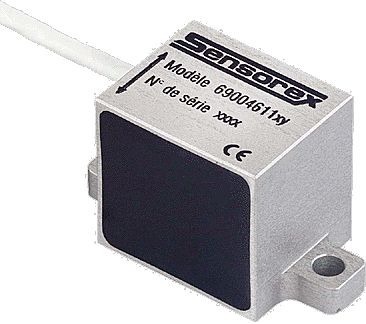

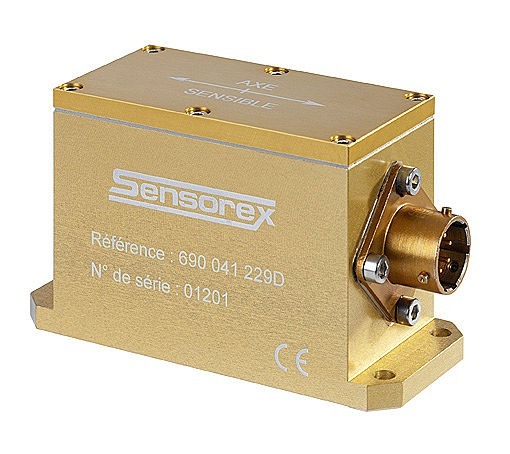

Inclinometre ATEX - According to ATEX 94/9/CE
Conditionneur ATEX - According to ATEX 94/9/CE
For mer informasjon, klikk her
Kontakt Klikk her for å ta kontakt med Hydex Semitronic


Signal conditioners & Electronic interfaces - Microelectronic

Type   Signal conditioners

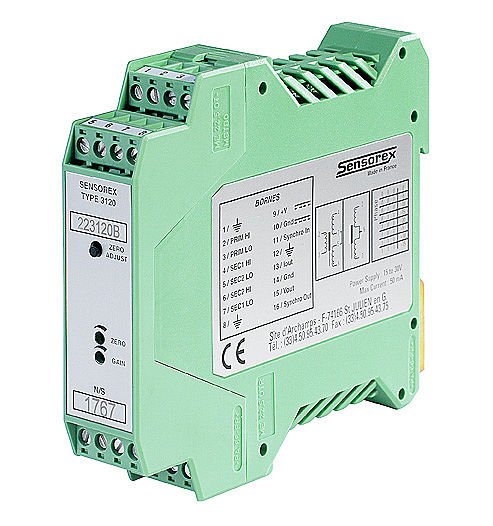

Egenskaper DIN housing universal conditioner
Hybrid and Micro-conditioner

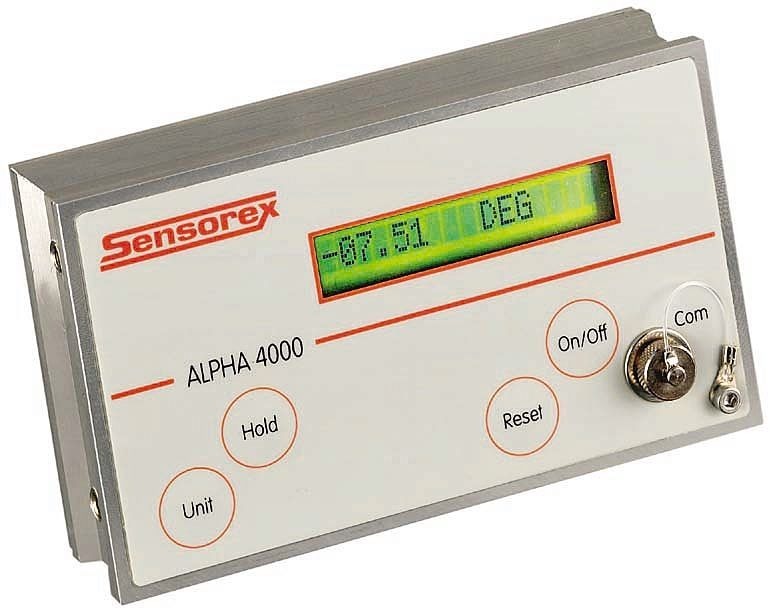

Display conditioner
Industrial conditioner
Europe card conditioner
For mer informasjon, klikk her
Kontakt Klikk her for å ta kontakt med Hydex Semitronic


Displacement Transducers
Type   LVDT displacement sensor for harsh environments
Egenskaper Rugged stainless steel LVDT sensor with guide and ball joint
Watertight, submersible up to 600 bars, transducer for hydraulic actuators.
Rugged environment, sensors with guide and ball joint
Application : radioactive, offshore (ex ATEX), sensors for servo-actuators
For mer informasjon, klikk her
Kontakt Klikk her for å ta kontakt med Hydex Semitronic

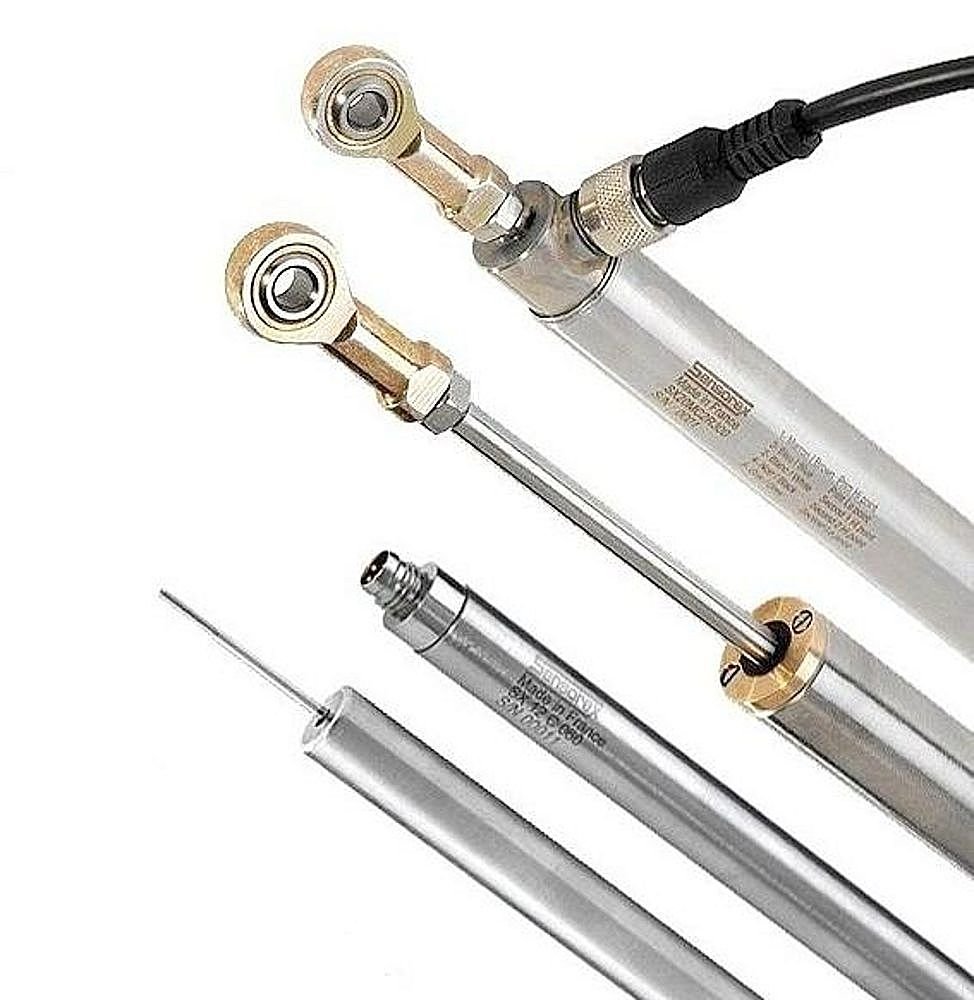

Type    LVDT displacement transducer
Egenskaper Standard industrial applications
Stroke up to 300mm
Diameter 9, 12 and 20 mm
Linearity < 0.25% FS
Application : Paper industry, automotive, Civil engineering
For mer informasjon, klikk her
Kontakt Klikk her for å ta kontakt med Hydex Semitronic

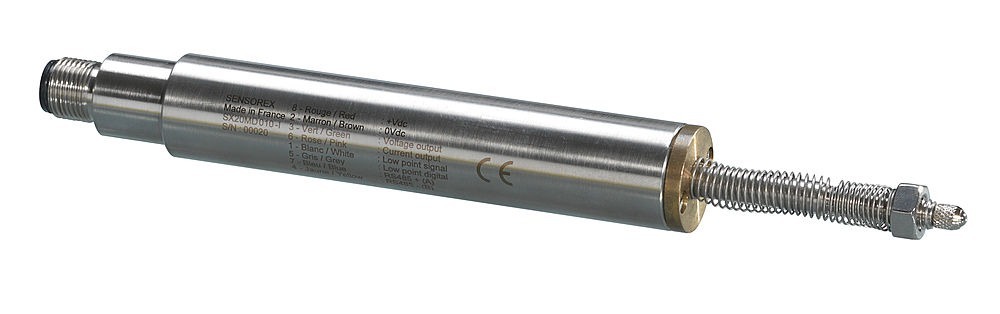

Type   LVDT displacement transducer
Egenskaper REDS - Digital high performance LVDT sensor
A digital hybrid module (HCN) is used to improve the accuracy of the sensor, notably the thermal drift and non-linearity. This allows a non-linearity better than ± 0.05 % of full scale on the output signal.
Measurement range is from ± 2.5 mm to ± 150 mm
Digital output RS485 Modbus & analog 0/10V and 4-20mA
For mer informasjon, klikk her
Kontakt Klikk her for å ta kontakt med Hydex Semitronic
