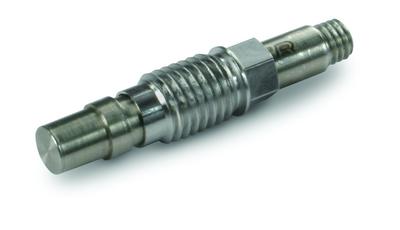

PCB Piezotronics model 113B03 high frequency pressure sensor

PCB Piezotronics general purpose pressure sensors for high frequency
  • High frequency pressure sensor, 15k psi, 0,39 pC/psi, 0.218" dia. diaphragm, accel. comp.
  • Sensitivity: (±15%) 0,39 pC/psi (0,056 pC/kPa)
  • Resonant Frequency: >=500 kHz
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0,212 oz (6.0 gm)

  • Application
    - Combustion Studies
    - Explosive Component Testing (e.g. detonators,
      explosive bolts)
    - Airbag Testing
    - Measurement of air blast shock waves
