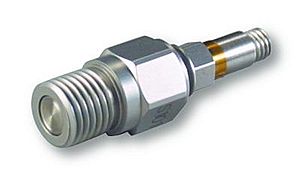

PCB Piezotronics model 102A14 cryogenic ICP® pressure sensor

PCB Piezotronics extreme environment dynamic pressure sensors
  • Cryogenic ICP® pressure sensor, 5000 psi, 1 mV/psi, 3/8-24 mtg thd, ground isolated
  • Sensitivity: (±15%) 1.0 mV/psi (0.145 mV/kPa)
  • Low Frequency Response: (-5%) 0.25 Hz
  • Resonant Frequency: >=250 kHz
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.388 oz (11.00 gm)

  • Application
    Virtually all dynamic pressure applications where sensor temperatures range from -196 to +135°C:
    - Compression
    - Pulsations
    - Surges
    - Cavitation
    - Hydraulic and pneumatic pressure fluctuations
    - High-intensity sound
    - Fluid borne noise detection
    - Shock and blast waves
    - Ballistics
    - Explosive component testing (e.g. detonators, explosive
      bolts)
    - Closed bomb combustion studies
    - Etc.
