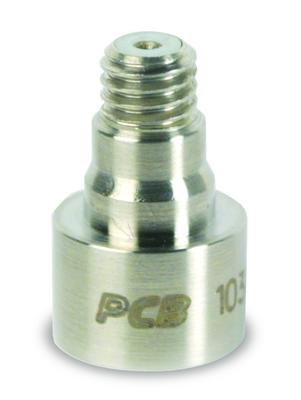

PCB Piezotronics model 103B02 acoustic ICP® pressure sensor

PCB Piezotronics high sensitivity pressure sensors
  • Acoustic ICP® pressure sensor, 3.3 psi, 1500 mV/psi, 10-32 top conn., accel. comp.
  • Measurement range: 3.00 psi (180.3 dB)
  • Sensitivity: (±15%) 1500 mV/psi (217.5 mV/kPa)
  • Low Frequency Response: (-5%) 0.5 Hz
  • Resonant Frequency: ≥13 kHz
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0,11 oz (3,15 gm)

  • Application
    Measurement of
    - transient pressure events
    - air turbulence
    - other such acoustic phenomena on structures or aerodynamic models


For mer informasjon      Klikk her  --- Datablad --- Tegninger --- Oversikt

Kontakt Hydex vedrørende PCB Piezotronics model 103B02 acoustic ICP® pressure sensor
