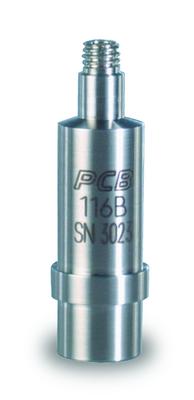

PCB Piezotronics model 116B03 high temperature pressure sensor (≤+398°C)

PCB Piezotronics extreme environment dynamic pressure sensors
  • High temperature (+750°F/398°C) pressure sensor, 100 psi, 6 pC/psi
  • Sensitivity: (±15%) 6 pC/psi (0.870 pC/kPa)
  • Temperature Range: (Operating) -400 to 750 °F (-240 to 399 °C)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: .717 oz (20.3 gm)

  • Application
    Virtually all dynamic pressure applications where sensor temperatures range from -196 to +135°C:
    - Compression
    - Pulsations
    - Surges
    - Cavitation
    - Hydraulic and pneumatic pressure fluctuations
    - High-intensity sound
    - Fluid borne noise detection
    - Shock and blast waves
    - Ballistics
    - Explosive component testing (e.g. detonators, explosive bolts)
    - Closed bomb combustion studies
    - Etc.



For mer informasjon      Klikk her --- Datablad --- Tegninger --- Oversikt

Kontakt Hydex vedrørende PCB Piezotronics model 116B03 high temperature pressure sensor (≤+398°C)
