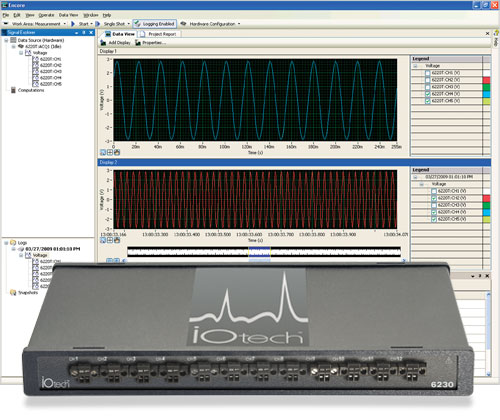

Measurement Computing Iotech 6230 - High-Speed, Isolated Voltage Input Module

Measurement Computing Advanced Measurement Products
  • High-Speed, Isolated Voltage Input Module
  • 12 voltage inputs
  • 24-bit ADC per channel, 50 kHz sample rate
  • ±10 V input range
  • 250 V channel-to-channel isolation
  • Simultaneous sampling
  • Eight digital I/O
  • Screw-terminal connectors
  • Multiple trigger modes
  • Ethernet-interface to PC
  • Expandable using multiple 6000 Series modules

Kontakt Hydex vedrørende Measurement Computing Iotech 6230 - High-Speed, Isolated Voltage Input Module

Type Ethernet-Based Voltage Measurement Module
Analog input type Voltage
Analog inputs 12
Digital I/O 8
Resolution 24 bit
Sample rates 50 kHz
Voltage input range ± 10 V
Connector type Screw-terminal
Ch-to-ch isolation Yes
For mer informasjon Klikk her

Kontakt Hydex vedrørende Measurement Computing Iotech 6230 - High-Speed, Isolated Voltage Input Module
