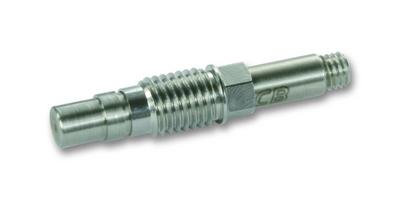

PCB Piezotronics model 112A05 high temperature pressure probe (≤+315°C)

PCB Piezotronics extreme environment dynamic pressure sensors
  • High temperature (+600°F/315°C) pressure sensor, 5000 psi, 1 pC/psi
  • Sensitivity: (-10 to +25%) 1,1 pC/psi (0.160 pC/kPa)
  • Temperature Range: (Operating) -400 to 600 °F (-240 to 316 °C)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: .212 oz (6.0 gm)

  • Application
    Virtually all dynamic pressure applications where sensor temperatures range from -196 to +135°C:
    - Compression
    - Pulsations
    - Surges
    - Cavitation
    - Hydraulic and pneumatic pressure fluctuations
    - High-intensity sound
    - Fluid borne noise detection
    - Shock and blast waves
    - Ballistics
    - Explosive component testing (e.g. detonators, explosive bolts)
    - Closed bomb combustion studies
    - Etc.



For mer informasjon      Klikk her --- Datablad --- Tegninger --- Oversikt

Kontakt Hydex vedrørende PCB Piezotronics model 112A05 high temperature pressure probe (≤+343°C)
