PCB Piezotronics miniature accelerometers - Single axis

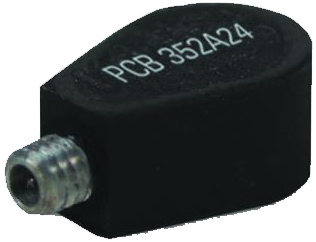

Model 352A24
Lightweight, ceramic
shear ICP®
100 mV/g, 1 to 8k Hz
± 50 g pk
Model 352A25
Lightweight, ceramic
shear ICP®
2.5 mV/g, 1 to 10k Hz
±2000 g pk

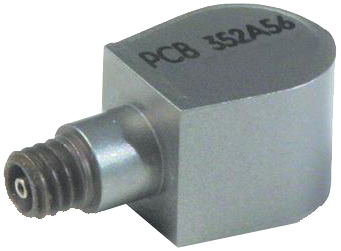

Model 352A56
High sensitivity,
ceramic shear ICP®
100 mV/g, ± 50 g pk
Model 352A71
Lightweight, ceramic
shear ICP®
10 mV/g, 0.5 to 10k Hz
± 500 g pk
Model 352A73
Lightweight, ceramic
shear ICP®
5 mV/g, 2 to 10k Hz
± 1000 g pk
Model 352B01
Lightweight, ceramic
shear ICP®
1 mV/g, 2 to 10k Hz
± 5000 g pk

Model 352B10
Lightweight, ceramic
shear ICP®
10 mV/g, 2 to 10k Hz
± 500 g pk
Model 352C22
Lightweight, ceramic
shear ICP®
10 mV/g, 1 to 10k Hz
± 500 g pk
Model 352C23
Lightweight, ceramic
shear ICP®
5 mV/g, 2 to 10k Hz
± 1000 g pk

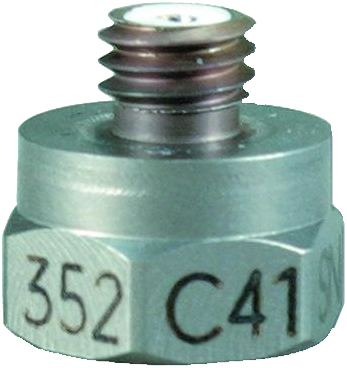

Model 352C41
Low profile, ceramic
shear ICP®
10 mV/g, 1 Hz to 10k Hz
± 500 g pk
Model 352C42
Low profile, ceramic
shear ICP®
100 mV/g, 1 Hz to 10k Hz
± 50 g pk
Model 352C65
High sensitivity,
ceramic shear ICP®
100 mV/g, 0.5 to 10k Hz
± 50 g pk


Model 352C66
High sensitivity
ceramic shear ICP®
100 mV/g, 0.5 to 10k Hz
± 50 g pk
Model 352C67
High sensitivity,
ceramic shear ICP®
100 mV/g, 0.5 to 10k Hz
± 50 g pk
Model 352C68
High sensitivity,
ceramic shear ICP®
100 mV/g, 0.5 to 10k Hz
± 50 g pk

Model 353B15
High frequenzy,
quartz shear ICP®
10 mV/g, 1 to 10k Hz
± 500 g pk
Model 353B16
High frequenzy,
quartz shear ICP®
10 mV/g, 1 to 10k Hz
± 500 g pk
Model 353B17
High frequenzy,
quartz shear ICP®
10 mV/g, 1 to 10k Hz
± 500 g pk

Model 353B18
High frequenzy,
quartz shear ICP®
10 mV/g, 1 to 10k Hz
± 500 g pk
Model 355B12
Ring-style,
ceramic shear ICP®
10 mV/g, 1 to 10k Hz
± 500 g pk
Model 357A07
Low outgasing,
charge output
1.7 pC/g, 15kHz
± 2000 g pk


Model 357A08
Teardrop-style,
charge output
0.3 pC/g , 10k Hz
± 1000 g pk
Model 357B06
Ring-style,
charge output
5 pC/g, 10k Hz
± 500 g pk
Model 357B11
High temp, ceramic shear,
charge output
3 pC/g, 12k Hz
± 2300 g pk

Model 357B14
High temp, ceramic shear,
charge output
3 pC/g, 12k Hz
± 2300 g pk
Model 357B45
Charge output
2.6 pC/g, 8 kHz
± 500 g pk
Model 357C10
Charge output
1.7 pC/g, to 10 kHz
± 500 g pk


Monteringstilbehør for
aksellerometere

Applications
• Environmental Testing
• Components
• Component Qualification
• Circuit Boards
• Fatigue Testing
                         • Operational Behavior Studies
• Small Assemblies
• Structural Testing
• Vibration & Sound Cancellation

Kontakt Hydex vedrørende PCB Piezotronics miniature accelerometers - Single axis
