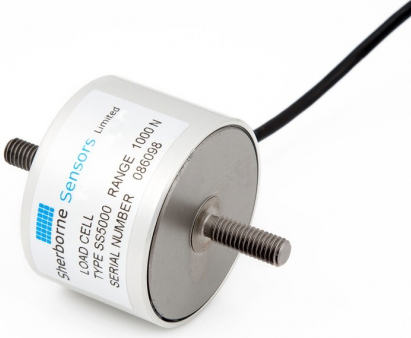

Sherborne Sensors SS5000 miniature high output universal load cell

Sherborne Sensors force transducers
  • Manufactured from stainless steel and have unusually high resistance to overload, shock and corrosion
  • Fully compensated for the effects of temperature on the zero output and sensitivity
  • Employs precision transducer quality bonded strain gauges inter-connected to minimise the effects of offset forces and bending moments as the primary transduction elements
  • Fitted with an integral multi-conductor cable properly bonded to ensure full EMC compatibility


Kontakt Hydex vedrørende Sherborne Sensors SS5000 miniature high output universal load cell

Type    Miniature high output universal load cell
Full scale load 250 ... 2000 N
Operational mode Tension / Compression
Environmental protection level IP65
Temperature range -25°C ... +75°C
Application Precision tension/compression force measurement in industrial, aerospace and military applications
For mer informasjon Klikk her --- Datablad

Kontakt Hydex vedrørende Sherborne Sensors SS5000 miniature high output universal load cell
