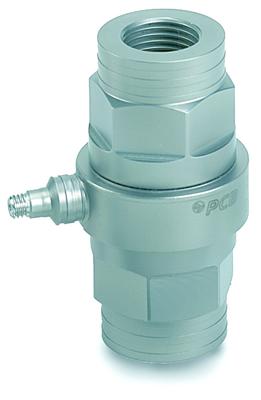

PCB Piezotronics model 224C quartz ICP® force links

PCB Piezotronics quartz ICP® force links
  • Link ICP® quartz force sensor, 25k lb comp., 8k lb tension, 0.2 mV/lb
  • Sensitivity: (±15%) 0.20 mV/lb (44.96 mV/kN)
  • Low Frequency Response: (-5%) 0.0003 Hz
  • Upper Frequency Limit: 8000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 5/8 - 18 Female

  • Application
    - Tensile Testing
    - Press Monitoring
    - Material Testing
    - Machine Process Monitoring
    - Tension & Compression
    - Push Rod Testing
    - Repetitive Operations
    - Press Force Monitoring
