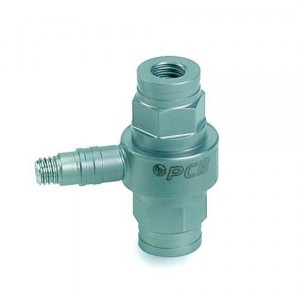

PCB Piezotronics model 221B02 quartz ICP® force links

PCB Piezotronics quartz ICP® force links
  • Link ICP® quartz force sensor, 100 lb comp., 100 lb tension, 50 mV/lb
  • Sensitivity: (±15%) 50 mV/lb (11241 mV/kN)
  • Low Frequency Response: (-5%) 0.006 Hz
  • Upper Frequency Limit: 15000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 1/4-28 Female

  • Application
    - Tensile Testing
    - Press Monitoring
    - Material Testing
    - Machine Process Monitoring
    - Tension & Compression
    - Push Rod Testing
    - Repetitive Operations
    - Press Force Monitoring
