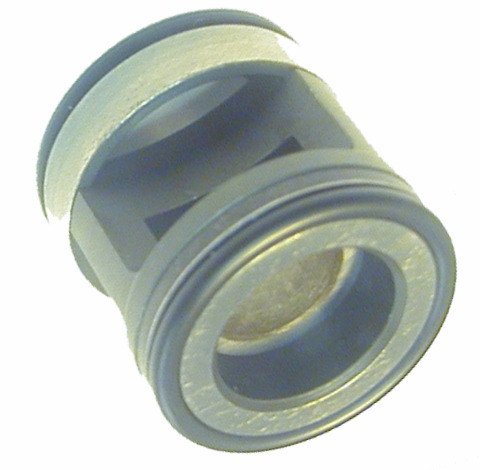

Bucher Hydraulics RVC... serie size 4...25 tilbakeslagsventil

Bucher Hydraulics tilbakeslagsventiler
  • High pressure rating
  • Virtually zero leakage
  • Compact construction
  • Various opening pressures
  • Optional orifice-bleed in check direction
  • Can be used as right-angle valve
  • Particularly suitable for use as make-up check valves
  • Interchangeable with RKVC
  • Option: metered flow in the noflow direction through an orifice
  • No-flow direction can be reversed
  • In conjunction with an ESH threaded mounting sleeve, can be used as a screw-in valve
        Bucher Hydraulics RVC... serie SIZE 4...25 tilbakeslagsventil
Kontakt Hydex vedrørende Bucher Hydraulics RVC... serie tilbakeslagsventil

Type        Check Valves, Size 04 ... 25
Designation Check valve / non-return valve
Design Guided plate design
Mounting method Push-in cartridge
Size Nominal 04...25 mm
Cavity type REG-01
Max operating pressure 350 bar (for 500 bar, contact Bucher Hydraulics)
Max flow rate 140 l/min
No-flow direction B → A (see symbol)
Hydraulic fluid HL and HLP hydraulic oils to DIN 51 524
Hydraulic fluid
temperature range
- 30°C ... + 80 °C
Viscosity range 10...500 mm²/s (cSt)
Minimum fluid cleanliness 18/14 to ISO 4406 / CETOP RP70H 8 ... 9 to NAS 1638
For mer informasjon Klikk her --- Datablad --- Oversikt

Kontakt Hydex vedrørende Bucher Hydraulics RVC... serie tilbakeslagsventil
